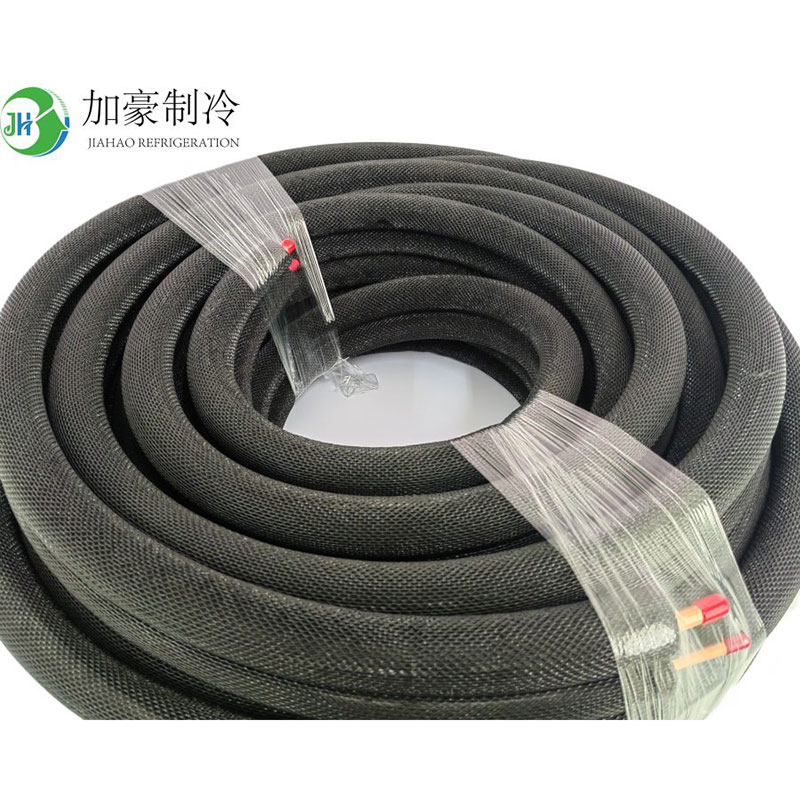

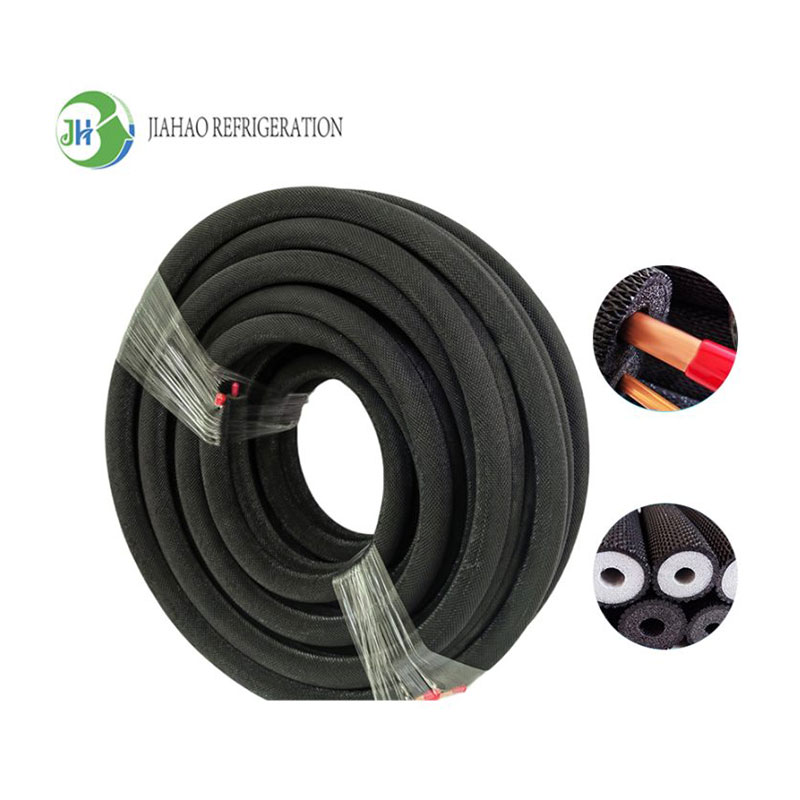

HVAC Black PE Insulated Copper Pipe Mini Split Line Set

• JiaHao Black PE Insulated Copper Pipe Coilmanufactured to Australian Standard AS/NZS 1571is suitable for use in domestic split system air conditioners with high pressure refrigerants R4l0A and R32.<br>

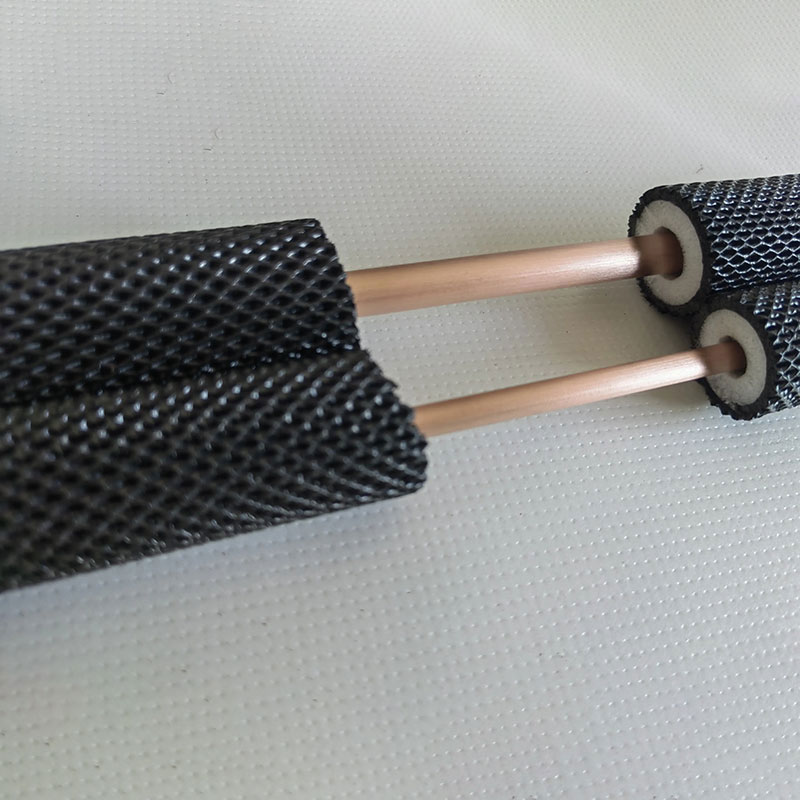

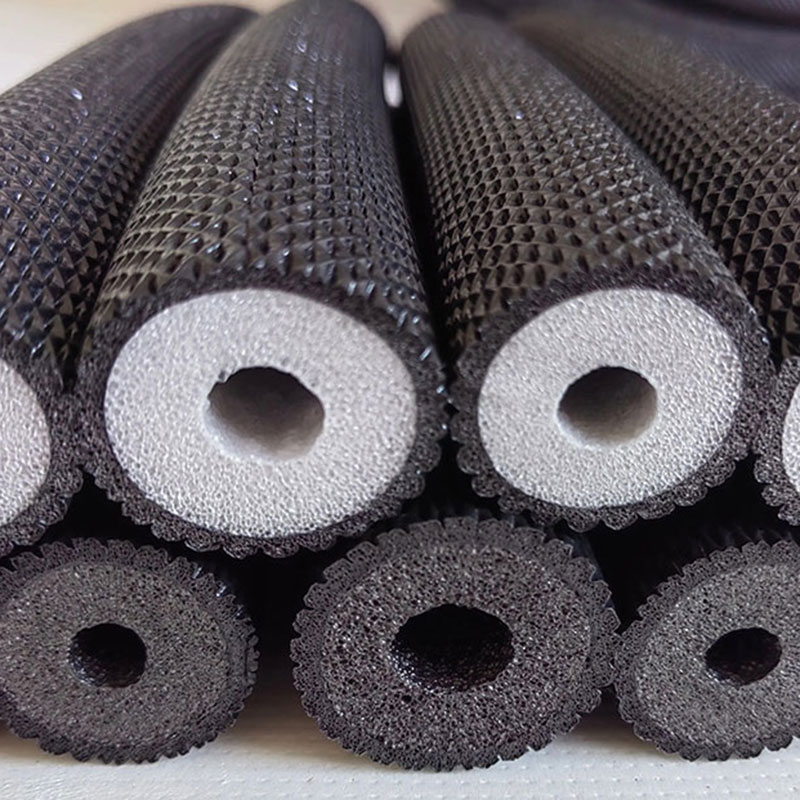

• Produced to be more durable with embossed polyethylene flm and crossed-linked, foamed closed cell polyethylene outer insulation.<br>
• The 10/16/33/50/65ft pre-insulated annealed copper pair coil with continous marking every meter makes it easy to install and save time & money as no measurement, glue or tape is needed.<br>
• Smooth surface makes it much more user friendly

Detail

Specification

Product Code	Copper Tube Outside Diameter& Wall Thickness(mm)	Copper Tube Outside Diameter(inch)	Length(ft)	R-Values	R410A&R32 Rated
JHBC2320	6.35x0.81+9.52x0.81	1/4+3/8	65	0.26	Yes
JHBC2420	6.35x0.81+12.70x0.81	1/4+1/2	65	0.26	Yes
JHBC2520	6.35x0.81+15.88x1.02	1/4+5/8	65	0.26	Yes
JHBC3520	9.52x0.81+15.88x1.02	3/8+5/8	65	0.26	Yes
JHBC3620	9.52x0.81+19.05x1.14	3/8+3/4	65	0.26	Yes
JHBC4620	12.70x0.81+19.05x1.14	1/2+3/4	65	0.26	Yes

Insulation Technical Data

Material	Highly flexible paired polyethylene
Thermal Conductivity	0.035W/m.K.at 0℃
Tensile Strength	55.8N/cm2(kgf/cm2)
Water Absorption	0.0051 MAX g/100cm2
Thickness Shrinkage	6%MAX@120±5℃
Appearance Density	Inner Tube:0.028g/cm3;Outside Tube:0.0303g/cm3
Moisture Permeability	8.6x10-11g/(m2.s.Pa)

Copper Tube Safe Working Pressure

Copper Tube Outside Diameter& all Thickness(mm)	50℃	Safe Working Pressure(kpa)65℃ 75℃
6.35x0.8	10635	9545 8820
9.52x0.8	6800	6105 5640
12.70x0.8	4995	4480 4140
15.88x1	5030	4515 4170
19.05x1.1	4697	4181 3895
