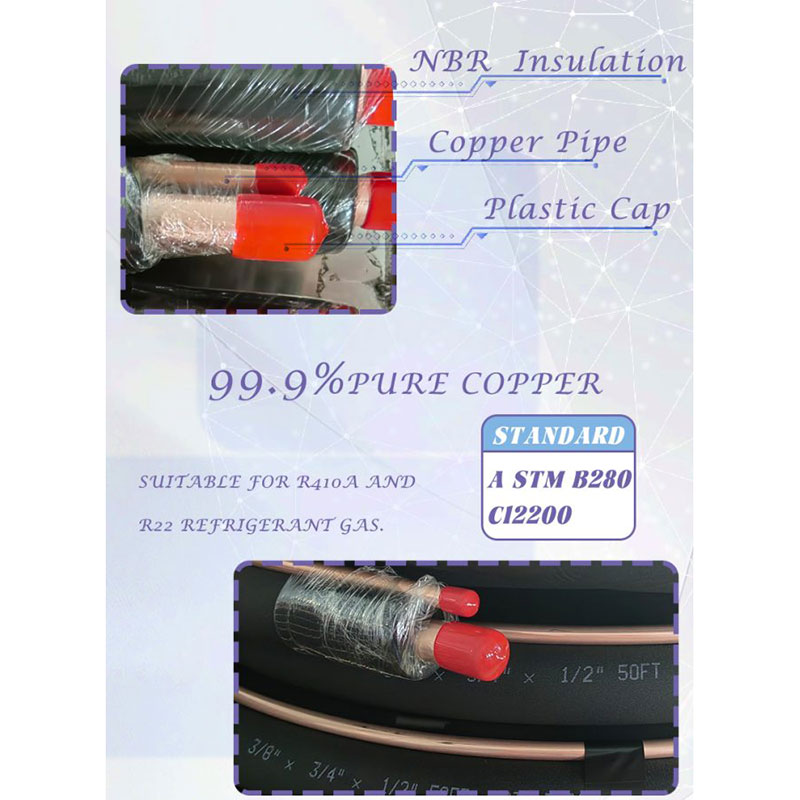

Rubber insulated insulation pipe is a flexible pipemade of rubber and plastic processed through special production processes.
• Low thermal conductivity: not exceeding 0.034W/m · k at 0 ° C, with excellent insulation performance.
• Completely closed cell structure: The insulation effect is long-lasting and good, which can effectively reduce heat loss.
• Strong resistance to water vapor penetration:Moisture resistance μ≥5000, forming a “built-in”waterproof layer.
• Good fire resistance: oxygen index above 32, not easy to burn, safe to use.
• Strong corrosion resistance: It can effectively resist the erosion of various chemical substances and extend the service life of pipelines.
• Environmentally friendly and non-toxic: It does not contain fluorinated materials such as CFC, HFC, orHCFCs, does not contain formaldehyde, dust, or fibers and has no pollution to the environment.
Insulation Technical Data(AS1530.3-1999)
| Material | Highly flexible 13mm and 19mmpaired tubular closed cellelastomeric nitrile rubber foam |
| Thermal Conductivity | 0.033W/mK.at 23°C |
| Water Absorption | 0.0030 g/100cm2 |
| Spread of Flame Index | 0 |
| Smoke Development Index | 3 |
| Working Temperature | -40C to +105°C Range |
Copper Tube Safe Working Pressure
| Copper Tube Outside Diameter &Wall Thickess(mm) | 50℃ | Safe Working Pressure(kpa)
65℃ 75℃ |
| 6.35x0.8 | 10635 | 9545 8820 |
| 9.52x0.8 | 6800 | 6105 5640 |
| 12.70x0.8 | 4995 | 4480 4140 |
| 15.88x1 | 5030 | 4515 4170 |
| 19.05x1.1 | 4697 | 4181 3895 |
Specification
| Product Code Cope | Copper Tube Outside Diameter& Wall Thickness (mm) |
Copper Tube Outside Diameter (inch) |
Length(ft) | R-Values | R410A&R32 Rated |
| 13mm Wall Thickness Insulation | |||||
| JHR2320T13 | 6.35x0.81+9.52x0.81 | 1/4+3/8 | 65 | 0.70 | Yes |
| JHR2420T13 | 6.35x0.81+12.70x0.81 | 1/4+1/2 | 65 | 0.60 | Yes |
| JHR2520T13 | 6.35x0.81+15.88x1.02 | 1/4+5/8 | 65 | 0.60 | Yes |
| JHR3520T13 | 9.52x0.81+15.88x1.02 | 3/8+5/8 | 65 | 0.60 | Yes |
| JHR3620T13 | 9.52x0.81+19.05x1.14 | 3/8+3/4 | 65 | 0.60 | Yes |
| 19mm Wall Thickness Insulation | |||||
| JHR2318T19 | 6.35x0.81+9.52x0.81 | 1/4+3/8 | 59 | 1.10 | Yes |
| JHR2418T19 | 6.35x0.81+12.70x0.81 | 1/4+1/2 | 59 | 1.00 | Yes |
| JHR2518T19 | 6.35x0.81+15.88x1.02 | 1/4+5/8 | 59 | 1.00 | Yes |
| JHR3518T19 | 9.52x0.81+15.88x1.02 | 3/8+5/8 | 59 | 1.00 | Yes |
