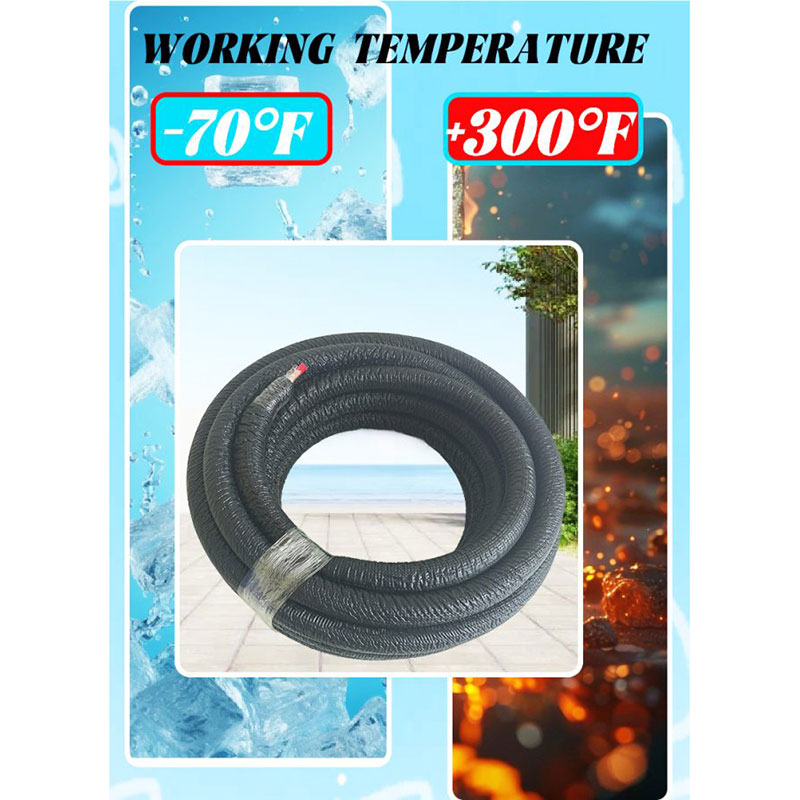

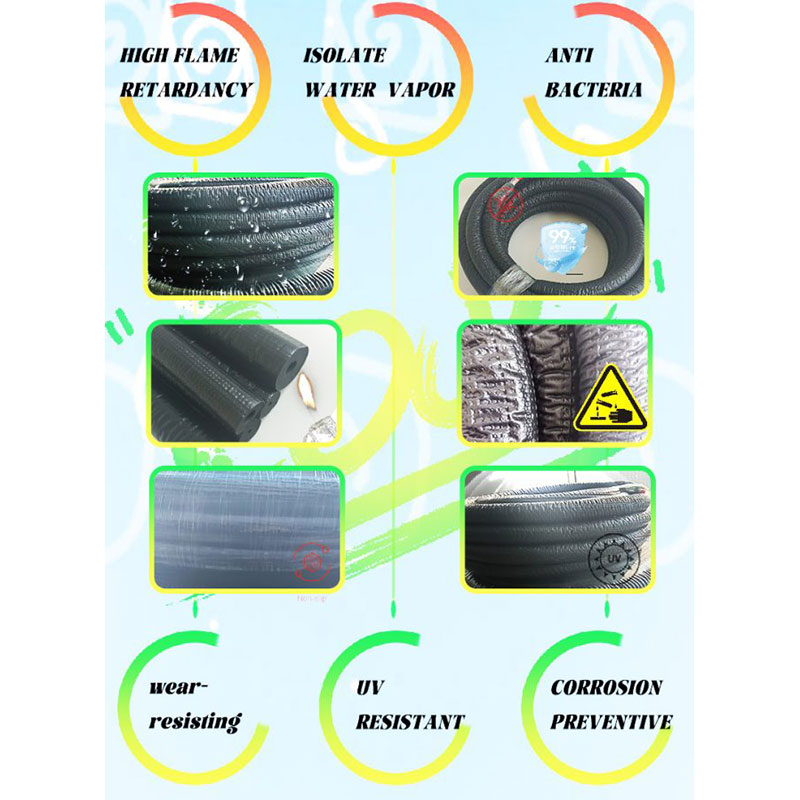

This type is Jiahao Factory’s Titan Insulated Connecting Pipe. This product is a flexible coextruded jacketed composite material that canbe applied to either K-FLEX NBR/PVC or EPDM(TITAN HT) tubular insulation. It is a polymeric jacketed material thatoffers excellent flexibility,abrasion and weather resistance, making it idealfor outdoor applications. K-FLEX TITAN can be usedfor outdoor applications with service temperatures ranging from -70 °F to +300 °F.
It is highly popular in Japan, Europe, and the USA.
Specification
| TITAN THICKNESS RECOMMENDATIONS-TO PREVENT CONDENSATION | ||
| SERVICE TEMPERATURE | -20°F(-29℃) | 50°F(10℃) |
| 3/8"D to 1-1/2"ID | 1" | 1/2" |
| 1-1/2"IPS to2-7/8"IPS | 1" | 1/2" |
| Thicknes listed for the specified ranges wilprevent condensation on indoor piping under the defined design conditions.Norma:85℉ and 70% R.H. |
||
| TITAN PIPE"R" | VALUES PE | SQUARE FOOT(ALL SIZES ARE NOMINAL) | ||
| Nominal insulation L.D. |
1/2"WALL Insul-Tube |
3/4"WALL Insul-Tube |
1"WALL Insul-Tube |
1-1/2"WALL Insul-Tube |
| 1/4" | 4. | 6.1 | 9.6 | 16.5 |
| 3/8" | 03. | 5.6 | 8.5 | 14.6 |
| 1/2" | 63. | 5.4 | 7.9 | 13.5 |
| 5/8" | 43. | 5.4 | 7.5 | 12.8 |
| 3/4" | 33. | 5.4 | 7.5 | 12.4 |
| 7/8" | 13. | 5.4 | 7.2 | 11.6 |
| 1-1/8" | 23. | 5.5 | 7.1 | 10.98 |
| 1-3/8" | 13. | 5.3 | 7.3 | - |
| 1-5/8" | 23. | 5.1 | 7.1 | - |
| 1-1/2"IPS | 12. | 4.4 | 6.2 | - |
| 2-1/8" | 63. | 4.9 | 6.6 | - |
| 2"IPS | 02. | 4.8 | - | - |
| 2-1/2"IPS | 93. | - | - | - |
| 2-5/8" | 03. | - | - | - |
| TITAN FOR ENERGY CONSERVATION (ASHRAE90.1-2010) | ||||
| NOMINALPIPE OR TUBE SIZE,INCHES |
<40℉ <4.4℃ |
40-60℉ 4.4-15.6℃ |
105-140℉ 40.6-60℃ |
141-200℉ 60.6-93.3℃ |
| <1" | 0.5 | 0.5 | 1.0 | 1.5 |
| 1"tol 1/2" | 1.0 | 0.5 | 1.0 | 1.5 |
| 11/2"to 4" | 1.0 | 1.0 | 1.5 | 2.0 |
