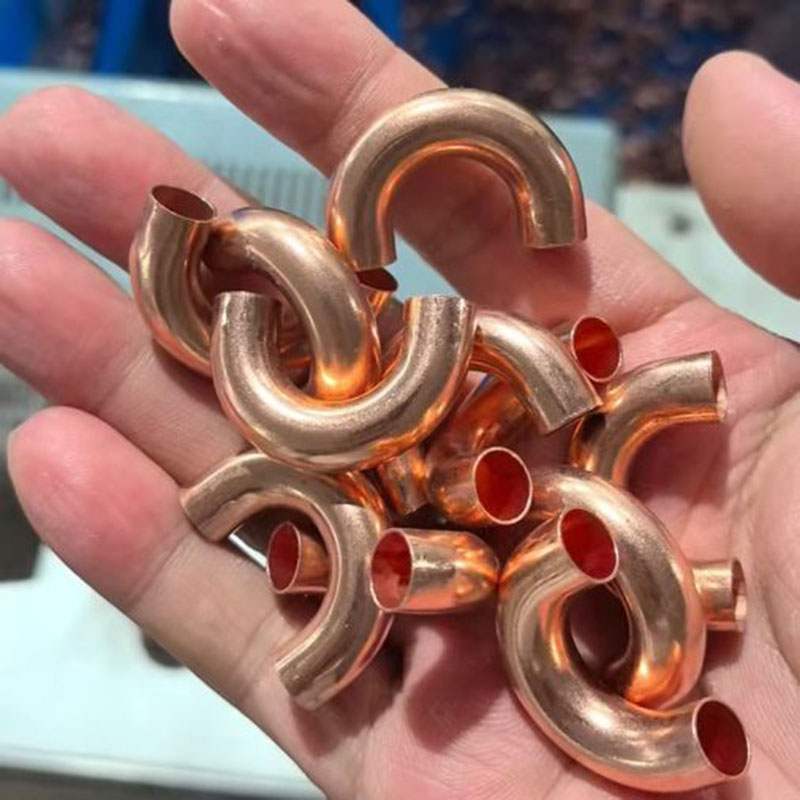

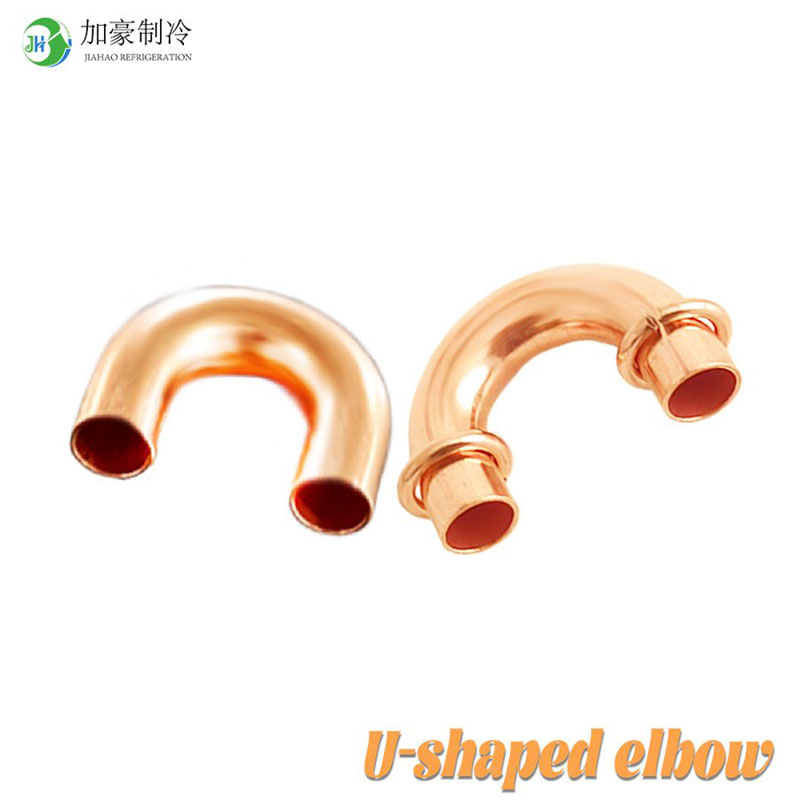

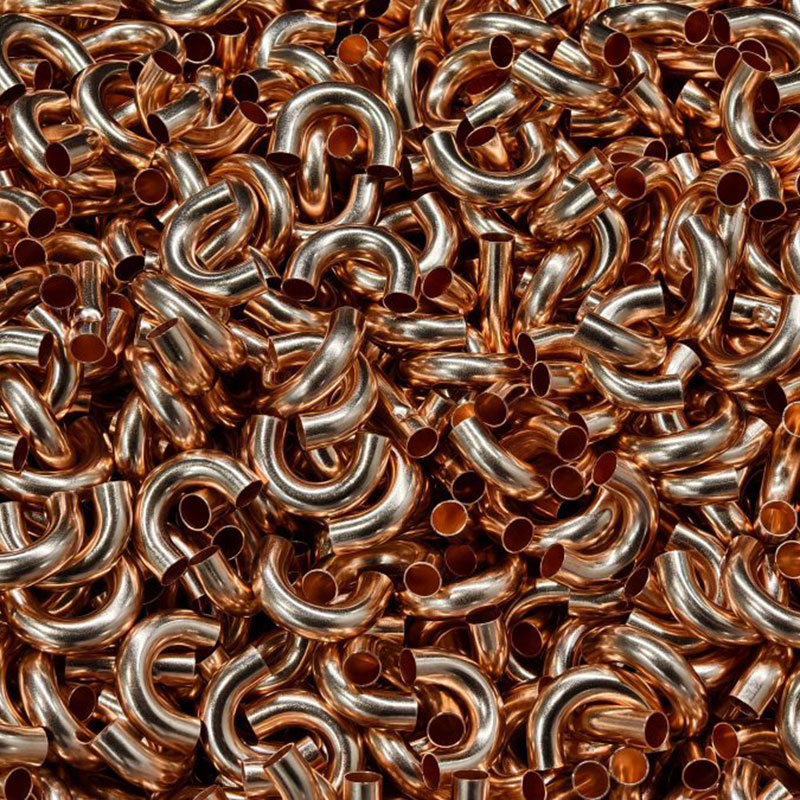

U-bend is a common pipe connector mainly used for turning connections in pipeline systems. It is commonly used invarious fluid transportation systems, such as the transportation of media such as water, gas, oil, etc.The design of the small U-bend allows the pipeline to turnat a specific angle (usually 180 degrees) to meet the needsof pipeline layout.
| nunber | external diameter/mm | wall thickness/mm | Center distance/mm | height/mm |
| 1 | φ7 | 0.5 | 16.48 | 20 |
| 2 | φ7 | 0.5 | 23.7 | 20 |
| 3 | φ7 | 0.5 | 25 | 20 |
| 4 | φ7.94 | 0.5 | 20.5 | 19 |
| 5 | φ7.94 | 0.5 | 25 | 22 |
| 6 | φ9.52 | 0.5 | 17.68 | 20 |
| 7 | φ9.52 | 0.5 | 25.4 | 21 |
| 8 | φ9.52 | 0.75 | 25.4 | 24 |
| 9 | φ12 | 0.4 | 35 | 28 |
| 10 | φ12.7 | 0.5 | 31.75 | 28 |
| 11 | φ12.7 | 0.75 | 31.75 | 28 |
| 12 | φ15.88 | 0.6 | 38 | 33 |
| 13 | φ15.88 | 1.0 | 38 | 33 |
| 14 | Φ16 | 1.0 | 48 | 45 |
| 15 | φ19 | 1.0 | 40 | |
| 16 | φ19 | 1.0 | 46 | |
| 17 | φ19 | 1.0 | 60 |
