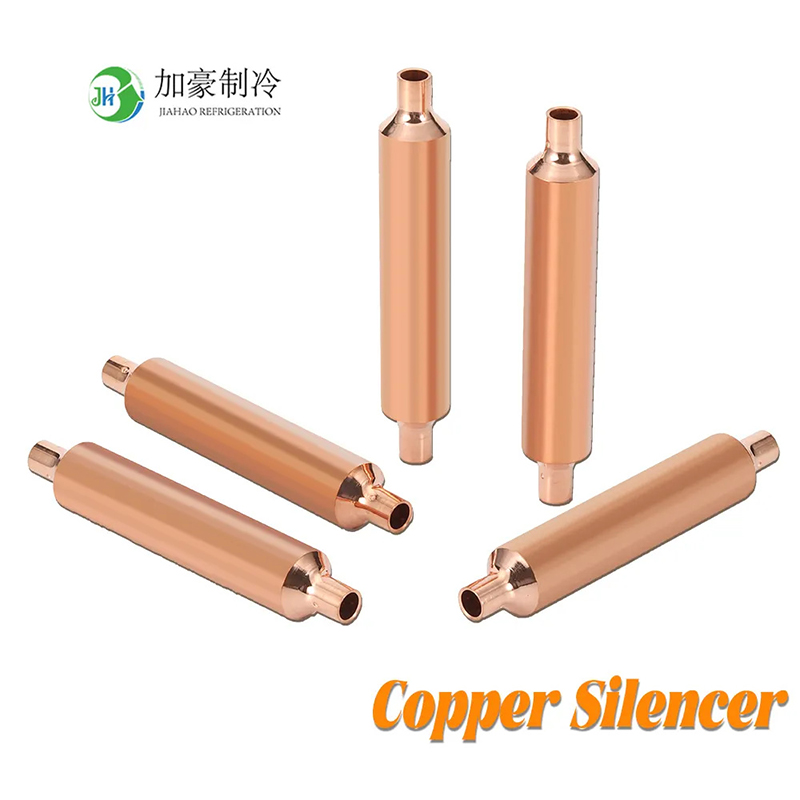

HVAC Copper Pipe Silencers Muffler

• Copper silencers, through their special design and material selection, can effectively reduce noise inside pipelines, improve environmental comfort and quietness
• Large quantities of spot goods available for customized processing based on drawings and samples

Detail

mmber	model	Lnterface inmmer diameter(mm)	Interface inmer diameter(mm)Valve body diameter(mm)		Socket depth(mm)	Valve body length(mn)	Interbody wall thickness(mm)	Adaptation reference
1	JHCS-19.035-1-80-XYQ-8.1-8	φ8.1	φ8.1	φ	10	80	1
2	JHCS-19.05-1-80-XYQ-6.35-8.1	φ6.35	φ8.1	φ	10	80	1
3	JHCS-25.4-1-118-XYQ-9.7-9.7	φ9.7	φ9.7	φ	10	118	1
4	JHCS-25.4-1-130-XYQ-12.9-12.9	φ12.9	φ12.9	φ	10	130	1
5	JHCS-32-1-152-XYQ-9.7-12.9	φ9.7	φ12.9	φ32	10	152	1
6	JHCS-40-1-178-XYQ-9.7-9.7	φ9.7	φ9.7	φ40	10	178	1	5-7HP Single system
7	JHCS-40-1-178-XYQ-9.7-12.9	99.7	φ12.9	φ40	10	178	1	5-7HP Single system
8	JHCS-40-1-178-XYQ-12.9-12.9	φ12.9	φ12.9	φ40	10	178	1	5-7HP Single system
